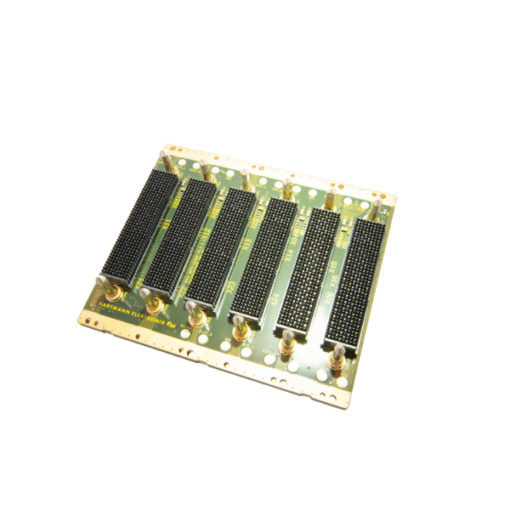

3U VPX – OpenVPX Backplanes

VPX is a broadly defined technology utilizing the latest in a variety of switch fabric technologies in 3U and 6U format blades. OpenVPX is the architecture framework that defines system level VPX interoperability for multi-vendor, multi-module, integrated system environments.

The OpenVPX framework defines clear interoperability points necessary for integration between Module to Module, Module to Backplane and Chassis. OpenVPX recommends, but does not specify development systems to assist evaluation, prototype and development of VPX systems. OpenVPX will evolve and include new fabric, connector and system technology as newer standards are defined.

Our VPX backplanes are hand-made with quality and longevity in mind. Ask your Hartmann representative which configuration is best for you!

Additional Information

Form Factor

3U

Slots

12, 14, 2, 3, 5, 6, 7, 8, 9

Slot Pitch

5HP common

Topology

Centralized, distributed

Impedance Controlled

Yes

Design

Up PCIe Gen3 /10 GbE

Base Specification

OpenVPX VITA 65/ VITA 46

PCB Thickness

5.4 mm

Connectors

MultiGig RT2 / Velox

Power Feed

Screw Terminal, Screw Terminal + ATX

Part No.HeightSlotsProfilePower FeedDatasheet
B1932010623U2OpenVPX BKP3-DIS02-15.2.8-4Screw Terminal
B1933010603U3OpenVPX BKP3-CEN03-15.2.9-4Screw Terminal
B1903050113U5VPX Full Mesh X4, Slot Pitch 5HPScrew Terminal + ATX
B1935015603U5OpenVPX BKP3-CEN05-15.2.20-3Screw Terminal + ATX
B1935114613U6OpenVPX BKP3-DIS06-15.2.14-3Screw Terminal
B1935110603U6OpenVPX BKP3-DIS06-15.2.7-3Screw Terminal
B1935115613U6OpenVPX BKP3-CEN06-15.2.2-3Screw Terminal
B1936101603U7OpenVPX BKP3-CEN07-15.2.3-4Screw Terminal
B1903080113U8OpenVPX BKP3-CEN08-15.2.15-4Screw Terminal + ATX
B1903080203U8OpenVPX BKP3-CEN08-15.2.16-4Screw Terminal + ATX
B1938117603U9OpenVPX BKP3-CEN09-15.2.17-3Screw Terminal
B1939017603U9OpenVPX BKP3-CEN09-15.2.11-3Screw Terminal
B1931026703U12OpenVPX BKP3-CEN12-15.2.6-3Screw Terminal
B1931026603U12VPX BKP3-CEN12-15.2.6-3 + Expansion PlaneScrew Terminal
B1931418603U14OpenVPX BKP3-CEN14-15.2.18-3Screw Terminal
