VME / VME64x Chassis

High Quality Chassis and Enclosures for VME and VME64x Applications

Home » Chassis » VME / VME64x Chassis
Hartmann Electronic is an industry leader in the designing, manufacturing and production of backplane technology, including VME and VME64x. Over the evolution of its near 40 years of existence, VME-bus has become a worldwide standard and is still used in a wide variety of applications across many different markets. Hartmann’s innovation in cost effective design benefits customers in diverse industries including military, transportation, medical imaging, telecom, industrial controls, and aerospace.
Hartmann’s VME Chassis are made for industrial applications in different form factors, including vertical and horizontal orientation of the backplane and cards. The Chassis can be equipped, in most cases, with an optional monitoring system or shelf management unit.

As an active member of VITA, Hartmann backplanes fully comply with, or exceed all specifications in accordance with ANSI/VITA 1.1-1997.

Hartmann VME Chassis are available in different heights also as horizontal slimline Chassis in 1/2/4U. Oprional with every slot length and with different configurations of Power Supplies and SchelfManagers.

ImageNameWidthHeightBoardSlotsProfilePowerCoolingOrientationRear I/OHot SwapMountinghf:att:pa_chassis-widthhf:att:pa_board-sizehf:att:pa_slotshf:att:pa_power-supplyhf:att:pa_mounting
VME64x 1U/84HP 2 Slots
VME64x 1U/84HP 2 Slots84 HP1U6U2VME64x250W cPCI, hot swapRemovableHorizontalYesYes19" rack-mount84-hp6u2250w-cpci-hot-swap19-rack-mount
VME64x 2U/84HP 4 Slots
VME64x 2U/84HP 4 Slots84 HP2U6U4VME64x300W cPCI, hot swapRemovableHorizontalYesYes19" rack-mount84-hp6u4300w-cpci-hot-swap19-rack-mount

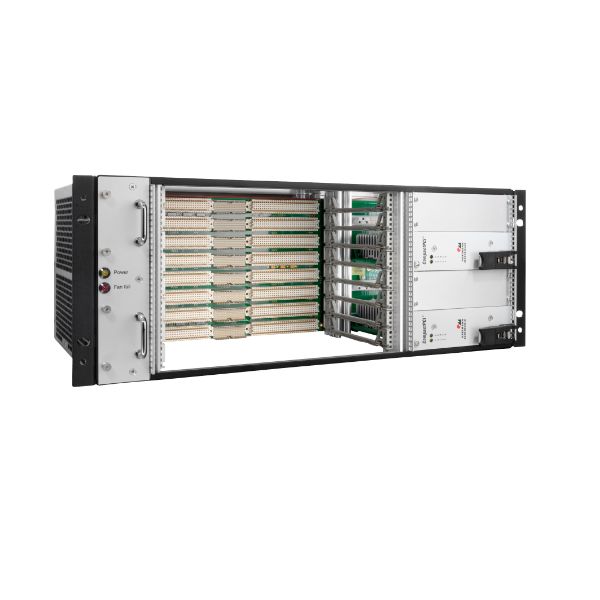

VME64x 4U 84HP 8 Slots
VME64x 4U 84HP 8 Slots84 HP4U6U8VME64x250W cPCI, hot swapRemovableHorizontalYesYes19" rack-mount84-hp6u8250w-cpci-hot-swap19-rack-mount
VME64x 7U 84HP 17 Slots
VME64x 7U 84HP 17 Slots84 HP7U6U17+2VME64x400W cPCI, hot swapFixed FansVerticalYesYes19" rack-mount84-hp6u172400w-cpci-hot-swap19-rack-mount
