Hartmann Electronic Card Guides are designed to align a board when it is inserted into a card rack. Hartmann’s card guides that fit your specific demands for mounting (horizontal/vertical) in a variety of lengths to fit a wide range of board sizes and thicknesses.
From tapered slots for easy insertion to snap in for easy installation and removal without tools – Hartmann offers the card guides and accessories to meet all of your demands.
Card Guides
Additional Information
- Card Guide 4HP
- With coding according to IEEE 1101.10
- Material: Polycarbonate UL 94 V-0
- For board thickness: 1.6 – 2.0 mm
- In different colors
- Red = CPU Slot
- Green = cPCI Power Supply Slot (½HP offset)
- Grey = Peripheral Slot
| Part No. | Description | Datasheet |
|---|---|---|

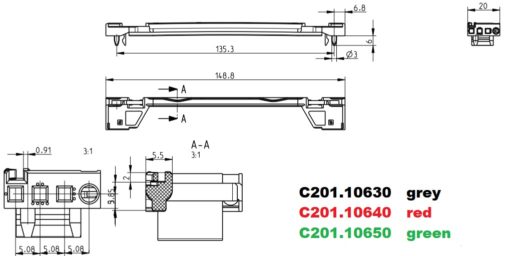

| C201.10630 | Card Guides - Card Guide Grey, 160 mm | |
| C201.10640 | Card Guides - Card Guide Red, 160 mm | |
| C201.10650 | Card Guides - Card Guide Green, 160 mm | |
| C201.10620 | Card Guides - Card guide grey, 80 mm, 1 kit for rear I/O use as kit/slot | NA |

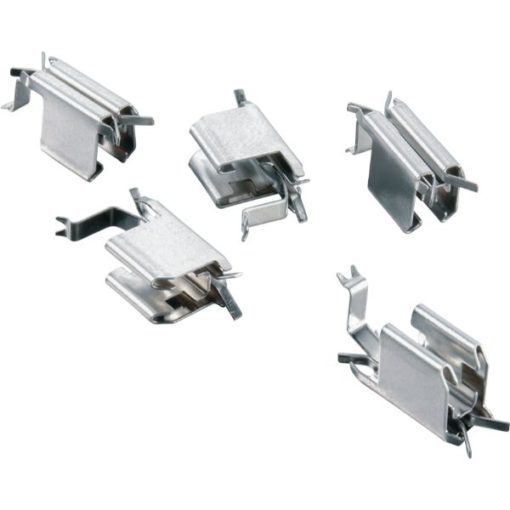

| C161.60131 | Card Guides - ESD clip for card guides | NA |

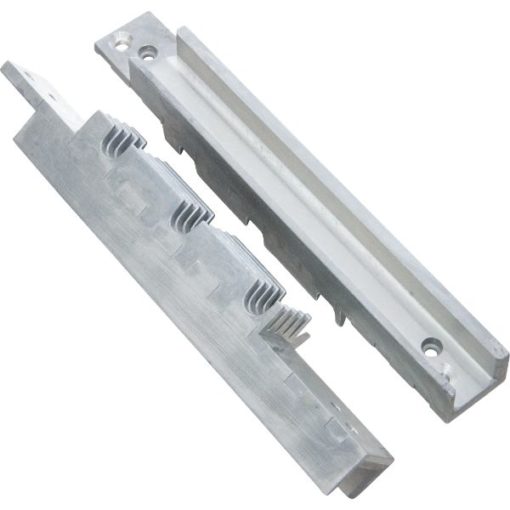

| C201.10684 | Card Guides - Conduction cooled card guide for single slot with fins for air cooling (pair with screws) | |
| C201.11101 | Card Guides - Conduction cooled cold plate 34HP for Open Frame Chassis, 5HP slot pitch | |
| C201.11110 | Card Guides - Conduction cooled cold plate 50HP for Open Frame Chassis, 5HP slot pitch |
