The test adapter is used for measurement and testing of test specimen boards, which gives optimal access of signals, address lines as well as power from backplane assembly. Usually the test adapter includes fields for voltage and amp, current measurements and in some cases also some pins for wire wrap to conduct custom connections.
Specifications

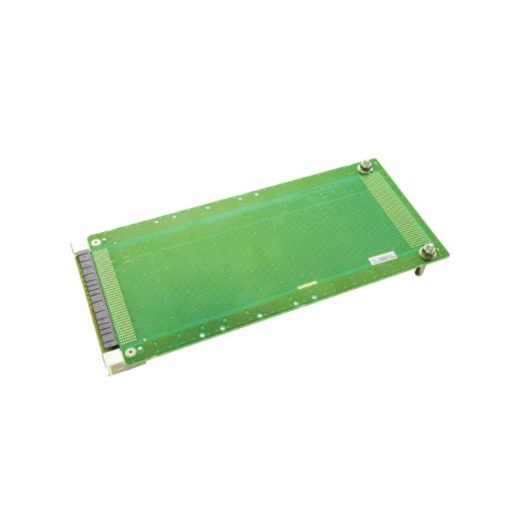

VPX Test Adapter
VPX Test Adapter
Additional Information
- 3U Open VPX extender card as per VITA 46
- PCIe Gen. 3 Compatible (Extender generates 3.5 dB additive loss. SBC, Backplane and Module must save 3.5 dB loss as a minimum, according to the specified VPX PCIe Gen.3 loss budget.)
- Data rate up to 10 Gbit/s
- Access to IPMB-Bus A & B through level shifter
- AUX-Clock and REF-CLK Input and output selectable through dip-switches
- SYSRESET Push-Button
| Part No. | Description | Datasheet |
|---|---|---|
| 1H00007411 | VPX Test Adapter - 3U VPX extender card (160+60mm) as per VITA 46, PCIe Gen.3, up to 10 Gbit/s, IPMB-Bus (A&B), AUX-Clock, REF-CLK, SYSRESET |
