cPCI Serial 4U 32HP 4 Slots

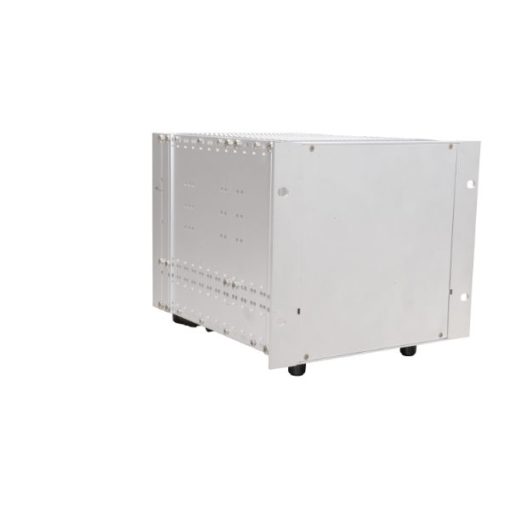

As the established PICMG 2.0 CompactPCI has evolved, so has Hartmann Electronic’s product line. The 4U cPCI 4 slot solution is designed with quality and versatility in mind. This chassis comes complete with a 3U, 4 slot PCIe Gen3 backplane with full mesh topology, powered by a 180W ATX power supply.

This product has been thoroughly tested and is in accordance with IEEE 1101.1 and 1101.10/11 as well as IEC 60297-3-101, -102, -103.

Additional Information

Other backplane configurations available upon request.




4 slot, 3U without rear I/O, GbE full mesh topology, PCIe Gen3, System slot right

Fan Tray


No. of Fans

1, (12V, 120mm, 120CFM, 48dB/A)


Bottom to top

Power Supply Type

180W ATX

Power Input

100 – 240VAC, 47-63Hz

No. of Supplies


Output Voltages

3.3V/12A, 5V/14A, +12V/14A, -12V/0.3A, Minimum load: 12V/0.3A

Power Supply Connector

Front side with switch

Chassis Height


Chassis Width


Chassis Depth

254.4 mm


1101.1 and 1101.10/11


60297-3-101, -102, -103

Military Shipboard

MIL-STD-810F: 514.5C-15 (vibration)

Military Highway

MIL-STD-810F: 514.5 C-1 (vibration), 515.5-10 (shock)


EN 50155-EN 1373 class 1 B, rolling stock (shock/vibration)
