PXIe 3U 8 Slot Series

PXI (PCI eXtensions for Instrumentation) is a PC-based bus platform for measurement and automation systems. PXI uses commercial PC-based PCI bus technology while combining rugged CompactPCI modular packaging, as well as key timing and synchronization features. While derived from cPCI, PXI adds the timing and synchronization features, among other things, that were not present in cPCI.

PXIe (PXI Express) serves as the evolutionary subset of the PXI standard. This evolution brings with it a smart serial communication interface, allowing for transfer of more data at a faster speed.

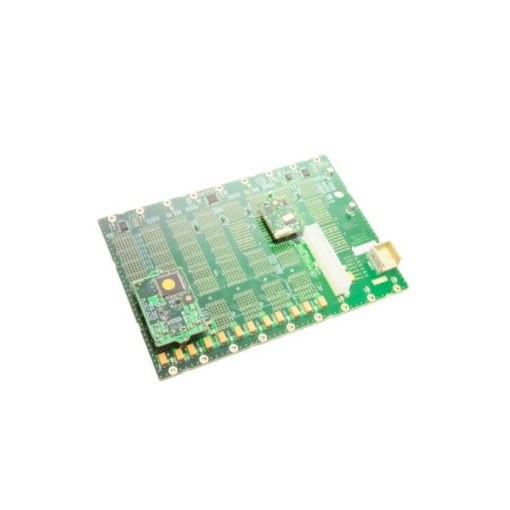

Hartmann Electronic’s PXIe 3U 8 Slot Backplane solution is designed and developed with high speed and rugged industrial necessities in mind. This PXIe solution offers a system slot, a PXIe slot, two hybrid-style slots and four legacy slots.

Additional Information

System Slot

Left

Slots

8

Slot Pitch

4HP (20.32 mm)

Slot Type

1x System Slot, 1x PXIe Slots, 2x PCIe Hybrid and 4x PCI Legacy Slots

Supply Voltage V I/O

5V default or 3.3V selectable via jumper

Clock Frequency

33 MHz

Transfer Mode

32 bit / PCIe Gen. 2

Rear I/O

N/A

PCI to PCI Bridge

Based on DIODES PI7C9X112SLFD

PXIe Clock Module

Based on PXI Express Hardware Specification

Geographic Addressing

Yes

Permissible Current Load

12V/20A, 3.3V/30A, 5V/25A, -12V/4A, 5V_AUX/4A

PCB Design

Optimized for best HF behavior

Base Specification

PXI-5 PXI Express Hardware Specification Rev. 1.1

Base Material

Type NELCO N4000-12

Ohmic Resistance

< 1.5 Ohm

Chassis GND

Continuous chassis GND surface where backplane is mounted to rack.

Card Thickness

2.6 mm

Connectors

2 mm press-fit, ADF differential

Terminal, 8 slots

PXI_TRIG[7:0], on-board Schottky barrier diodes, pull-up resistor

Operating Temperature

8 slots: -20°C … +85°C

Relative Humidity

90%, non-condensing

Part No.DescriptionSlotsincludesDatasheet
PXEB38EA10PXIe 3U - Hybrid Series8Bridge-, Clock Module
