CompactPCI 2U 84HP 4 Slots

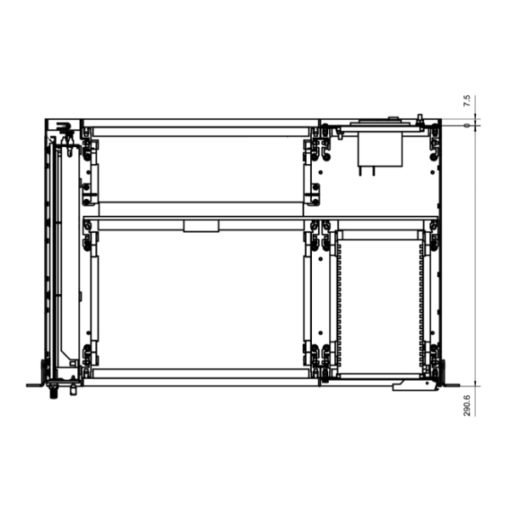

Hartmann CompactPCI 2U system platform provides an intelligent, practical packaging solution for high-performance processors. The full width rack mount model provides a 4 slot 5V I/O 9U monolithic (6U cPCI) backplane for horizontal mounting of boards.

This system is designed with enhanced EMC features and conforms to mechanical standards IEEE 1101.1 and 1101.10/11 and IEC 60297-3-101, -102, -103. Unit comes completely assembled, wired, and tested.

Additional Information

Unit comes assembled, wired and tested.

Mounting

19" rack-mount

Backplane

4 slot, 9U monolithic (6U cPCI,) 3U power with rear I/O, 5V I/O, 64 bit/33 MHz, System slot left with 2x P47 connectors

Fan Tray

Removable fan tray, with replaceable dust filter, LED’s for power / fan fail

No. of Fans

3, 36.4CFM/29dB(A)

Airflow

Left to right

Power Supply Type

300W cPCI, hot swap

Power Input

90 – 264VC / 47-63Hz

No. of Supplies

1

Output Voltages

3.3V/40A, 5V/40A, +12V/10A, -12V/2A (Total max 300W)

Power Supply Connector

Included with switch, fuse and filter

Chassis Height

2U

Chassis Width

84 HP

Chassis Depth

283.1 mm

IEEE

1101.1 and 1101.10/11

IEC

60297-3-101, -102, -103

Military Shipboard

MIL-STD-810F: 514.5C-15 (vibration)

Military Highway

MIL-STD-810F: 514.5 C-1 (vibration), 515.5-10 (shock)

Railway

EN 50155-EN 1373 class 1 B, rolling stock (shock/vibration)
