3U cPCI Power Backplanes

CompactPCI bus is compatible, in terms of electrical specification, with the PC world’s PCI bus. The mechanical specifications were adapted to the commonly used Euro-board plug in systems for 19″ racks.

Hartmann offers a wide selection of CompactPCI power backplanes designed according to the PICMG 2.0 Power supply unit connector pin assignment specification/ATX power supply specification, or PICMG 2.11 power interface specification and are equipped with the P47 power plug-in connector. Our cPCI Power backplanes are hand-made with quality and longevity in mind. Ask your Hartmann representative which configuration is best for you.

Also have a look at our cPCI Serial and ATX power supplies here.

Additional Information

  • 1 to 4 slot 3U cPCI power backplane
  • designed for power supply with either DIN41612 type M connector or P47 plug-in connector
  • Supports parallel connection of multiple backplanes
Form Factor

3U

Slots

1, 2, 3, 4

Base Specification

PICMG 2.0, PICMG 2.11

Connectors

Designed for either power supply with ATX DIN 41612 type M, or P47 plug-in connector

Base Material

Type FR-4 UL 94 V-0

Other Features

Supports parallel connection of multiple backplanes

Operating Temperature

-40°C … +85°C

Relative Humidity

90%, non-condensing

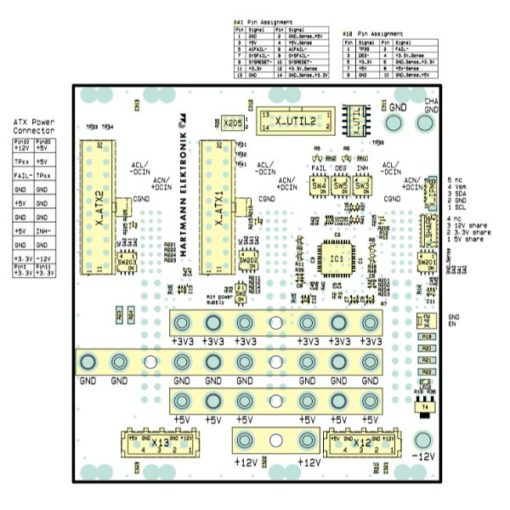

Part No.HeightSlotsVariantfor Power Supply ConnectorCurrent SupplyDatasheethf:att:pa_power-supply-connector
33L00400243U4ECOP47P47 Connector
33L00300243U3ECOP47P47 Connector
33L20000143U2L2P473-pin MATE-N-LOK connector (Supports parallel connection of multiple backplanes)
33L10000143U1L1P473-pin MATE-N-LOK connector (Supports parallel connection of multiple backplanes)
33L00000143U1L0DIN41612 type MDIN 41612 type M connector Pin B2 facing up
33R00000133U1R0DIN41612 type MDIN 41612 type M connector Pin B2 facing down
