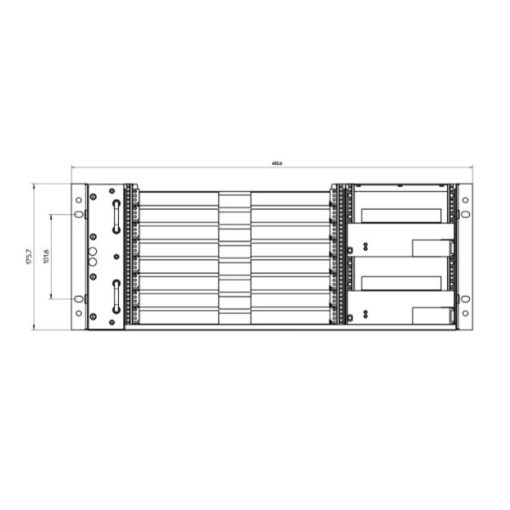

VME64x 4U 84HP 8 Slots

Hartmann Electronic’s 8 slot 19” rack mountable VME solution – The VME64x 4U system. This VME chassis comes with two 300W cPCI hot-swap power supplies with room for up to 4 supplies and horizontally oriented card slots. This platform conforms to VITA 1.1-1997 while providing a low profile, practical packaging solution for high-performance processors.

This system is designed with enhanced EMC features, removable fan tray with replaceable filter, backplane and quiet axial fans for proper air flow through the chassis while conforming to mechanical standards IEEE 1101.1 and 1101.10.

Additional Information


19" rack-mount


8 slot, 9U monolithic (6U VME64x, 3U power,) with J0 connectors, Automatic daisy chain/bus grant, active termination, with 2x P47 connectors

Fan Tray

Removable fan tray, with replaceable filter, LED’s for power / fanfail

No. of Fans

6, 36.4CFM/29dB(A)


Left to right

Power Supply Type

300W cPCI, hot swap

Power Input

90 – 264VC / 47-63Hz

No. of Supplies

2, system can accept up to 4 supplies

Output Voltages

3.3V/40A, 5V/40A, +12V/10A, -12V/2A (Total max 300W)

Power Supply Connector

Included with switch, fuse and filter

Chassis Height


Chassis Width

84 HP

Chassis Depth

283.1 mm


1101.1 and 1101.10/11


60297-3-101, -102, -103

Military Shipboard

MIL-STD-810F: 514.5C-15 (vibration)

Military Highway

MIL-STD-810F: 514.5 C-1 (vibration), 515.5-10 (shock)


EN 50155-EN 1373 class 1 B, rolling stock (shock/vibration)

Part No.DescriptionDatasheet
LMH0000260VME64x 4U 84HP 8 Slots - Removable fan tray
LMH0000180VME64x 4U 84HP 8 Slots - Fixed fans (special order item upon request only)
