CompactPCI 4U 32HP 4 Slots

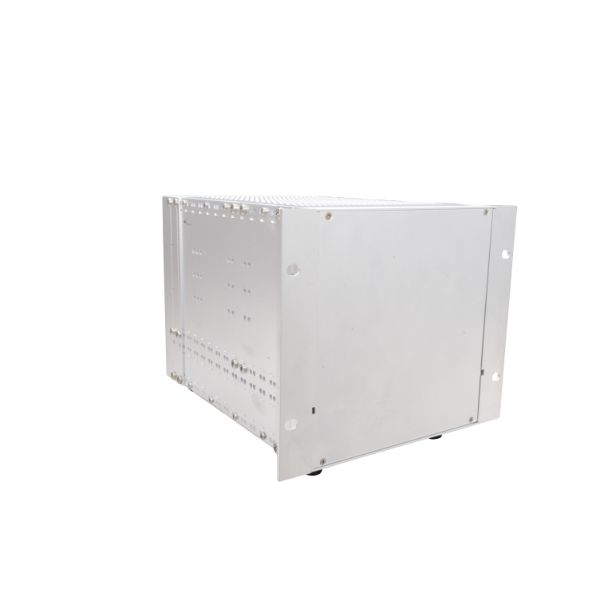

The Hartmann CompactPCI 4U system platform provides an intelligent, practical packaging solution for high-performance processors. The versatile rack mount or desktop model provides a 4 slot 3.3 or 5V I/O 3U cPCI backplane for vertical mounting of boards.

System is designed with enhanced EMC features. Bottom mount fan tray. Rugged yet stylish chassis conforms to mechanical standards IEEE 1101.1 and 1101.10/11 and IEC 60297-3-101, -102, -103.

Additional Information

Unit comes assembled, wired and tested.
Other backplane configurations available upon request.

Mounting

Panel-mount

Backplane

4 slot, 3U, 3.3V or 5V I/O, 32 bit/33 MHz, system slot right with ATX connector

Fan Tray

Fixed

No. of Fans

1, (12V, 120mm, 120CFM, 48dB/A)

Airflow

Bottom to top

Power Supply Type

180W ATX

Power Input

100 – 240VAC, 47-63Hz

No. of Supplies

1

Output Voltages

3.3V/12A, 5V/14A, +12V/14A, -12V/0.3A, minimum load: 12V/0.1A

Power Supply Connector

Front side with switch

Chassis Height

4U

Chassis Width

32HP

Chassis Depth

254.4 mm

IEEE

1101.1 and 1101.10/11

IEC

60297-3-101, -102, -103

Military Shipboard

MIL-STD-810F: 514.5C-15 (vibration)

Military Highway

MIL-STD-810F: 514.5 C-1 (vibration), 515.5-10 (shock)

Railway

EN 50155-EN 1373 class 1 B, rolling stock (shock/vibration)

Part No.DescriptionDatasheet
LMH0000113CompactPCI 4U 32HP 4 Slots - with 5V VI/O backplane
'LMH0000970CompactPCI 4U 32HP 4 Slots - with 3.3V VI/O backplane
