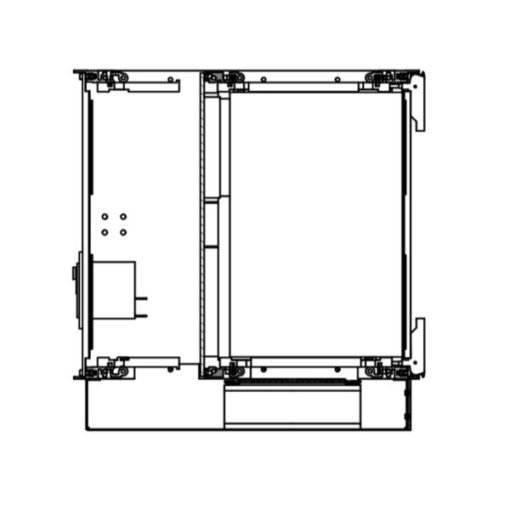

VME64x 7U 84HP 17 Slots

Hartmann Electronic’s 17 slot 19” rack mountable VME solution – The VME64x 7U system. This VME chassis comes with two 400W cPCI hot-swap power supplies with vertically oriented card slots. This platform conforms to VITA 1.1-1997 while providing a high capacity yet practical packaging solution for high-performance processors.

This system is designed with enhanced EMC features, fixed fan tray, backplane and quiet axial fans for proper air flow through the chassis while conforming to mechanical standards IEEE 1101.1 and 1101.10.

Additional Information

Unit comes assembled, wired, and tested


19" rack-mount


17 slot, 6U monolithic VME64x with J0 connectors, automatic daisy chain/bus grant, active termination with 2x P47 connectors

Fan Tray

1 U fix

No. of Fans

3, (12V, 120mm, 120CFM, 48dB/A)


Bottom to top

Power Supply Type

400W cPCI, hot swap

Power Input

90 – 264VC / 47-63Hz

No. of Supplies


Output Voltages

3.3V/55A, 5V/55A, +12V/14A, -12V/4A (Total max 400W)

Power Supply Connector

Included with switch, fuse and filter

Chassis Height


Chassis Width

84 HP

Chassis Depth

283.1 mm


1101.1 and 1101.10/11


60297-3-101, -102, -103

Military Shipboard

MIL-STD-810F: 514.5C-15 (vibration)

Military Highway

MIL-STD-810F: 514.5 C-1 (vibration), 515.5-10 (shock)


EN 50155-EN 1373 class 1 B, rolling stock (shock/vibration)
