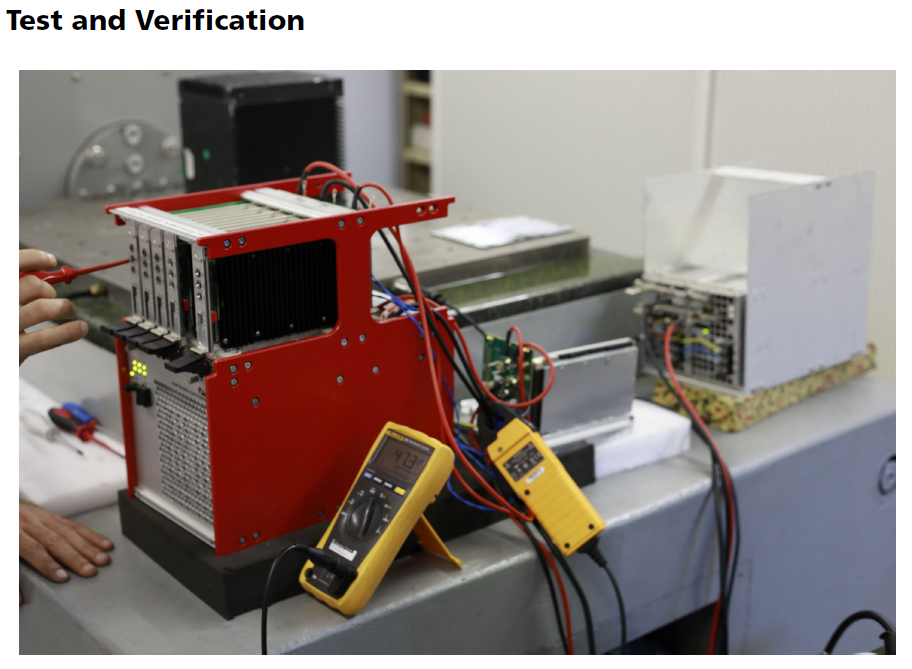

Testing and Verification

High Speed Data Transmission, Environmental Type Test
Home » Capabilities » Testing and Verification

High Speed Data Transmission

  • TDR based end-to-end compliance testing for high-speed data lines as PCIe Gen. 4
  • High speed test adapters for high speed backplane interfaces (open VPX, CPCI Serial) and not assembled ball grid arrays
  • Our new SOSA aligned 7 slot VPX backplane p.n. B143070010 successfully passed a measurement of the high speed links and testing against the 100GBASE-KR4 performance. The measurement was conducted by the independent external test laboratory Harting Corporate Technology Services which is certified according to DIN EN ISO/IEC 17025: 2005.

Environmental Type Test

  • Testing according to military and industry standards
  • Environmental Stress Screening Tests (ESS – Test)
  • Switch-on behavior by extended temperature ranges
  • High and Low Temperature measurement with moisture measurement environment
  • High Voltage Tests
  • Altitude: MIL-STD-810F
  • Transportation Vibration: MIL-STD-810E
  • Funktional Shock: MIL-STD-810G
  • Other tests or standards on request
  • EMI-Tests


  • Automatic optical inspection
  • 2D and 3D images taken and processed automatically
  • 1x 15 MP top camera
  • 4x 10MP side cameras

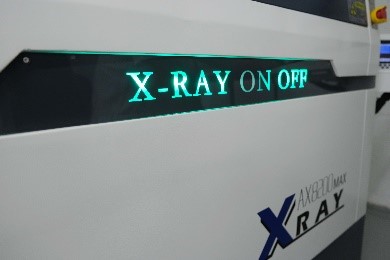

  • By making use of computed tomography utilizing x-rays, a non-destructive and detailed examination of the inner structure of PCBs is possible
  • 2,5D x-ray inspection for an area of 550 x 550mm
  • X-ray tube with 90kV and 8W (focal spot size 5µm)
